Specifications

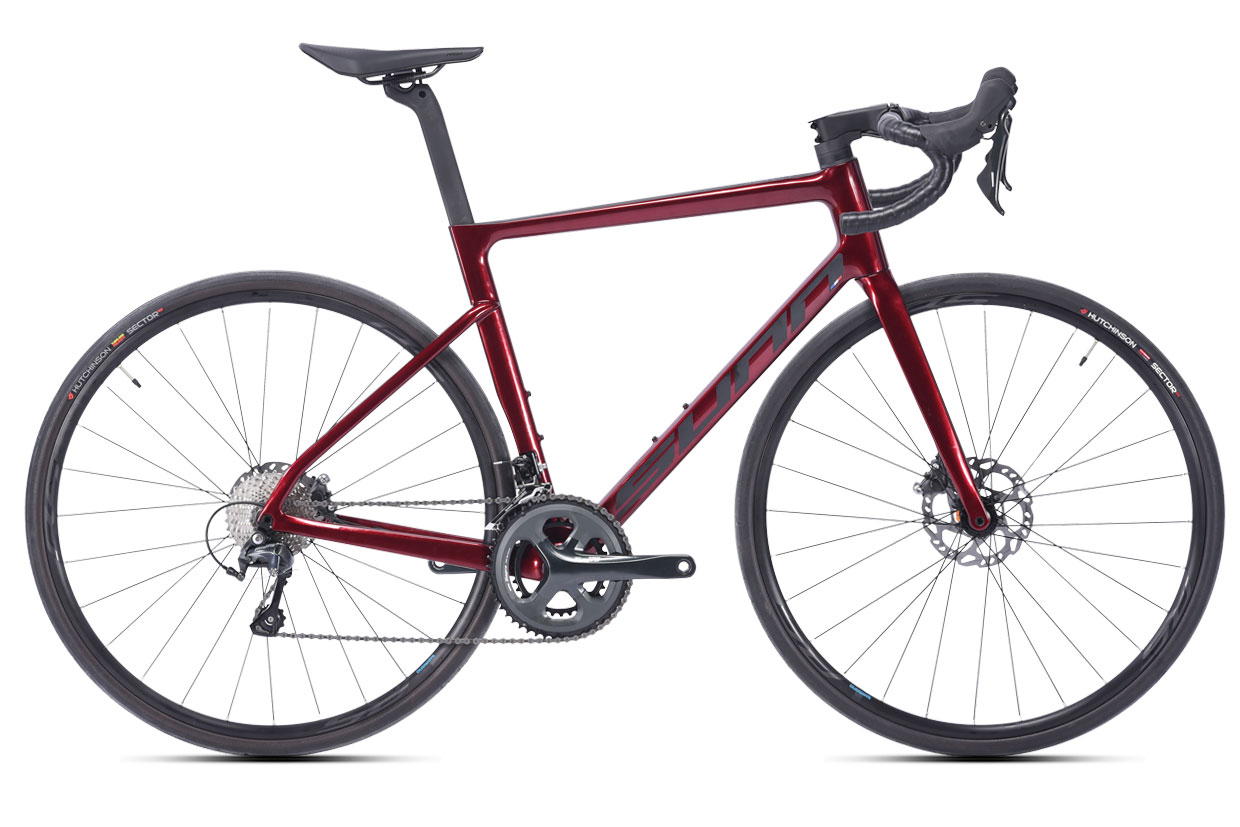

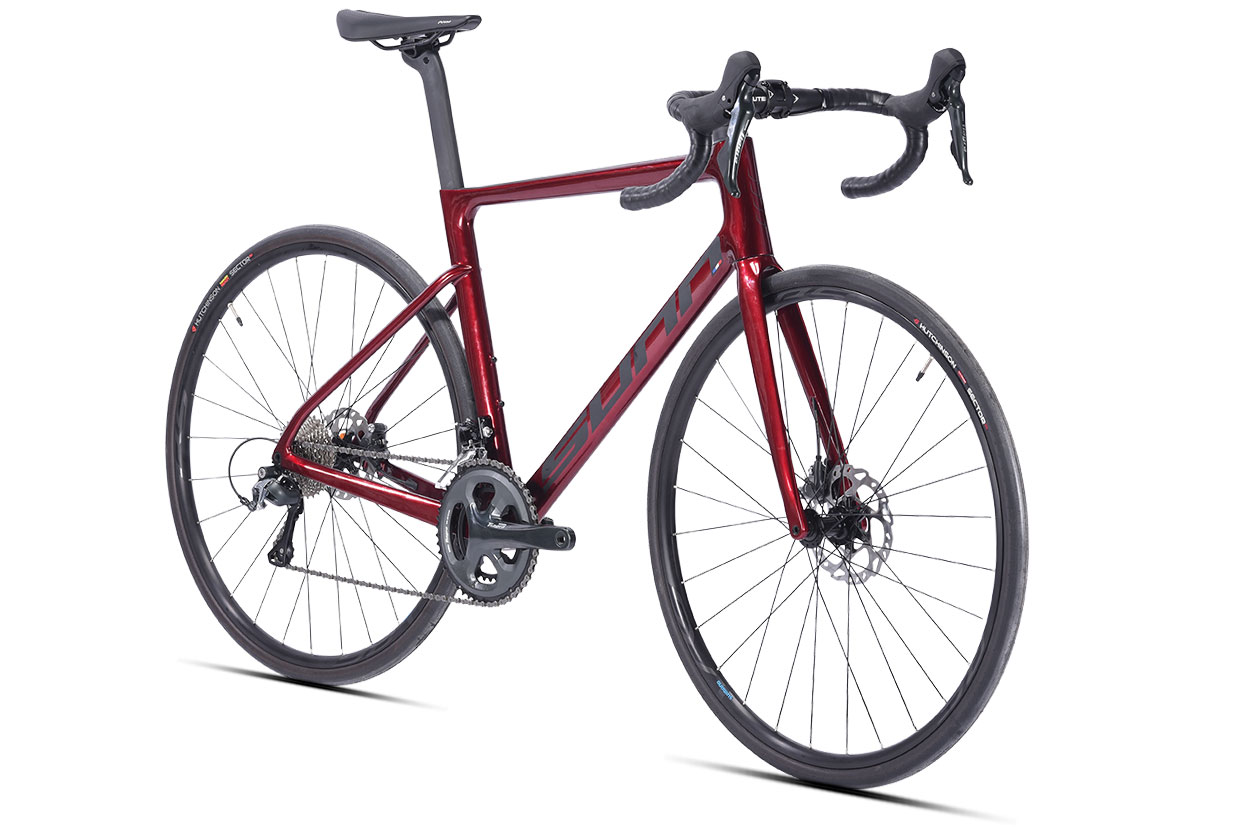

Non-contractual photo. The difficulties in supplying due to the COVID-19 health crisis, impose certain modifications of technical specifications without notice to ensure the availability of the bicycles.
| FRAME |
Frame
CARBONE MONOBLOC ROUTING INTEGRATED THRU AXLE
Fork
CARBONE DURITE DE FREIN INTEGRÉE |
| TRANSMISSION |
Front derailleur
SHIMANO 105 2V
Rear derailleur
SHIMANO TIAGRA 10V
Crankset
SHIMANO 50-34 170 S / 172,5 M L / 175 XL XXL
Cassette
SHIMANO 10V 11-32
Handle
SHIMANO TIAGRA HYDAULIQUE 2x10V |
| WHEELS |
Wheel size
700
Wheels
SHIMANO RS171
Tires
VITTORIA ZAFFIRO PRO 700X32C NOIR |
| COMPONENTS |
Handlebar
BRUTE ALUMINIUM 400 (S/M), 420 (L/XL/XXL)
Stem
BRUTE ALUMINIUM 90 (S/M), 100 (L/XL), 110 (XXL)
Seat post
ASPHALT CARBONE
Saddle
FIZIK TEMPO ARGO R5 |
| WEIGHT |
Weight
8,7 |
| DOCUMENTATION |
Geometry
Size | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
Seat Height | ST | 455 | 496 | 526 | 539 | 565 |
Top tube Length | TT | 512 | 551 | 564 | 577 | 601 |
Head tube angle | HA | 71° | 73° | 73° | 73,5° | 73,5° |
Seat tube angle | SA | 75° | 74° | 74° | 73,5° | 73,5° |
Chainstay Length | RC | 410 | 410 | 410 | 410 | 410 |
Bottom bracket offset | BB | -70 | -70 | -70 | -70 | -70 |
Head tube Length | HT | 142 | 160 | 172 | 185 | 210 |
Reach | 368 | 389 | 399 | 402 | 419 | |
Stack | 538 | 565 | 577 | 590 | 614 |
Sizes
