Specifications

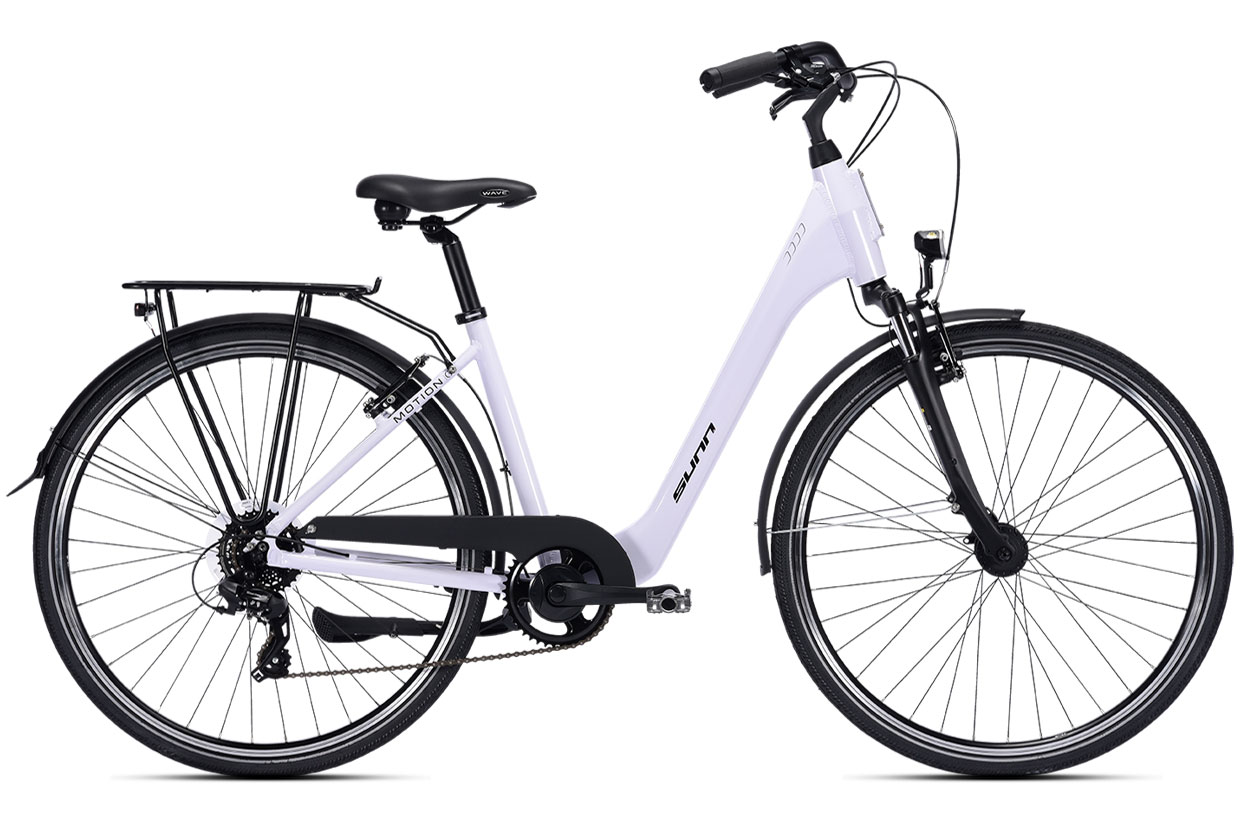

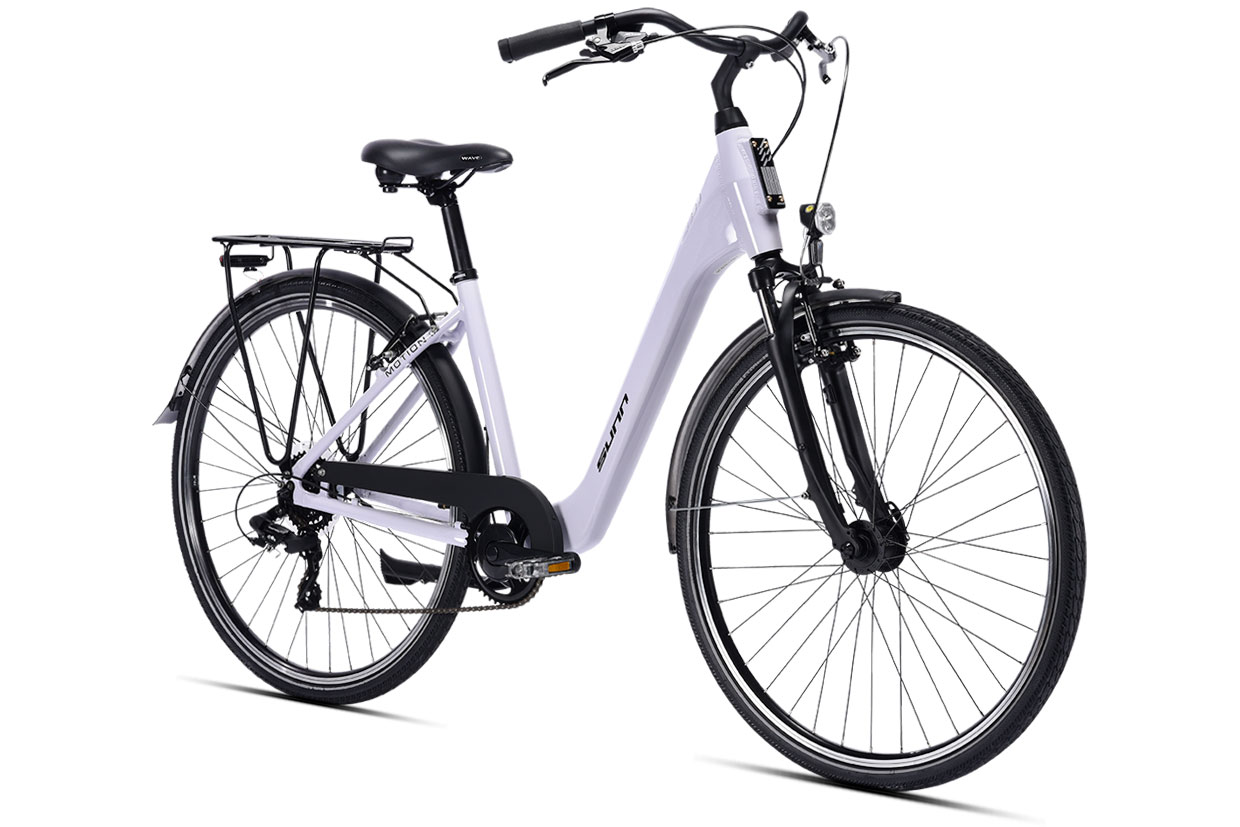

Non-contractual photo. The difficulties in supplying due to the COVID-19 health crisis, impose certain modifications of technical specifications without notice to ensure the availability of the bicycles.
| FRAME |
Frame
ALLOY 6061 OPEN FRAME EDGE TUBING
Fork
ZOOM 141 COIL 45MM |
| TRANSMISSION |
Rear derailleur
SHIMANO TOURNEY TX800 8v
Crankset
WHEELTOP 42T
Cassette
SHIMANO HG31 8v 11-34
Handle
SHIMANO ALTUS M315 8v |
| BRAKES |
Brake lever
LEE CHI V-BRAKE |
| WHEELS |
Wheel size
26'' (S) - 28'' (M/L)
Wheels
26x1.75 (S) - 700x35 (M/L)
RIms
MACH1 ER10 19c 36T
Hubs
SHIMANO DYNAMO HUB T4000 TX505
Tires
CHAOYANG KESTREL 26x1.75 (S) CHAOYANG KESTREL 700x35 (M/L) |
| COMPONENTS |
Handlebar
HL 6061 600MM
Seat post
AL 6061 31.6x300MM
Saddle
SELLE ROYAL WAVE |
| ACCESSORIES |
Accessories
GARDE-BOUE, FEUX, BEQUILLE PORTE-BAGAGES 27kg |
| WEIGHT |
Weight
16,80 |
| DOCUMENTATION |
Geometry
Size | S (26) | M (28) | L (28) | |
|---|---|---|---|---|
Seat Height | ST | 400 | 450 | 500 |
Top tube Length | TT | 580 | 611 | 625 |
Wheelbase | WB | 1079 | 1136 | 1152 |
Head tube angle | HA | 70° | 69° | 69° |
Seat tube angle | SA | 73° | 73° | 73° |
Chainstay Length | RC | 445 | 460 | 460 |
Bottom bracket offset | BB | -55 | -60 | -60 |
Head tube Length | HT | 190 | 190 | 205 |
