Specifications

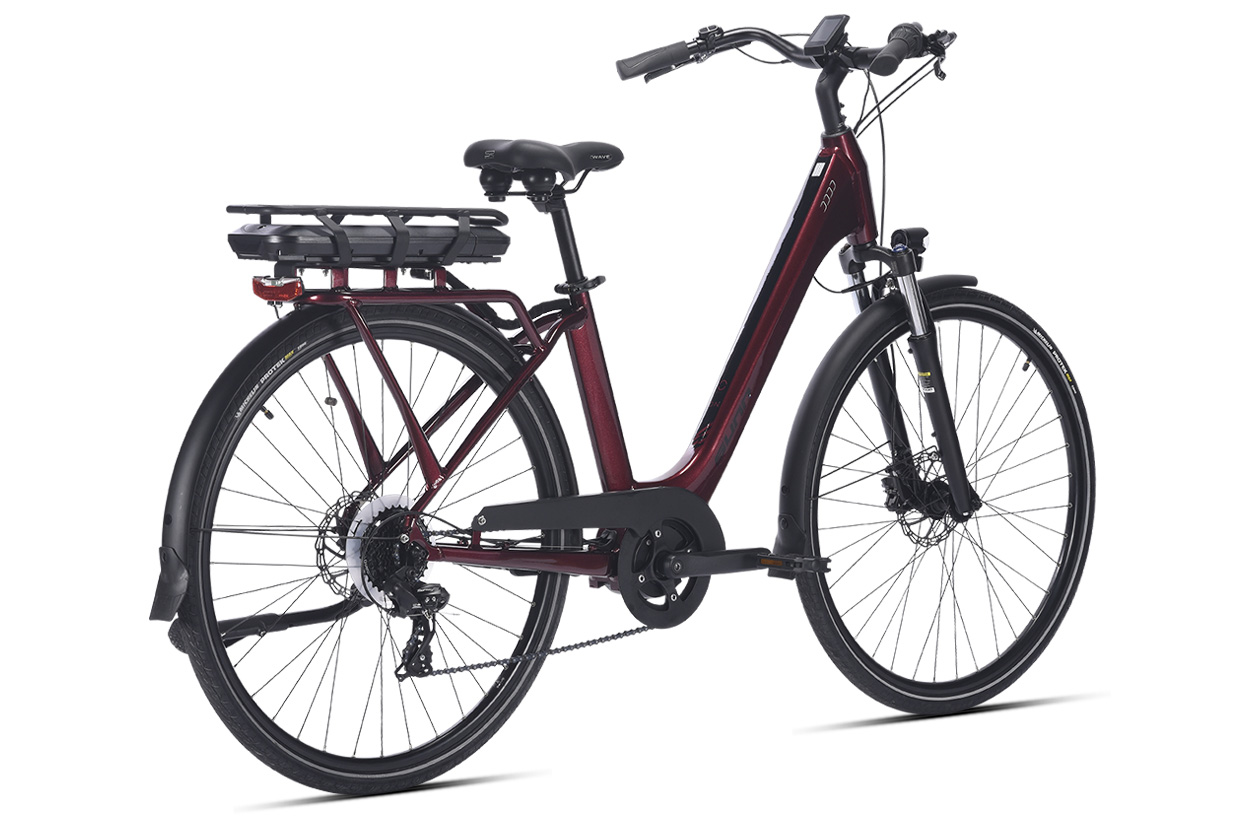

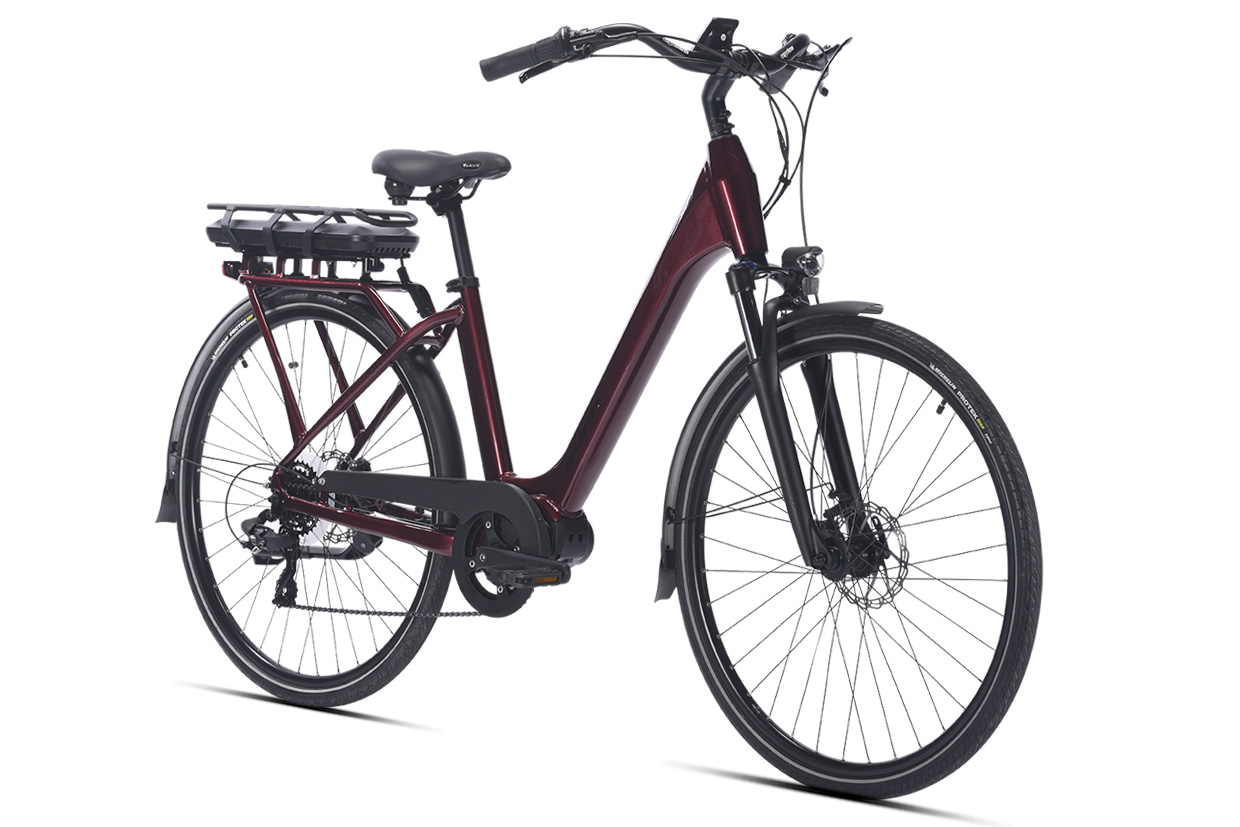

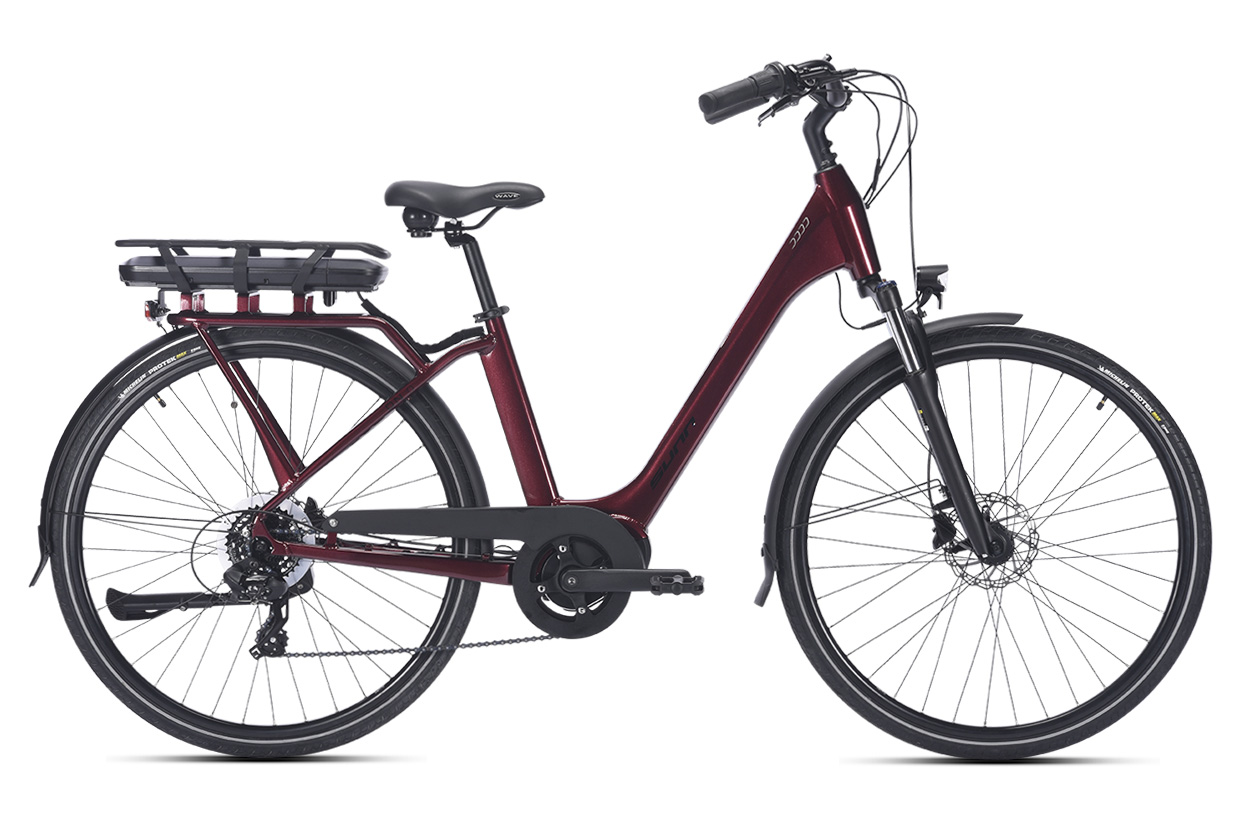

Non-contractual photo. The difficulties in supplying due to the COVID-19 health crisis, impose certain modifications of technical specifications without notice to ensure the availability of the bicycles.
| FRAME |
Frame
LLOY 6061 OPEN FRAME 26” / 28” RACK BATTERY INTERNAL CABLE ROUTING
Fork
ZOOM SUSPENSION 187D COIL BLOCABLE 65MM |
| SYSTEM |
Moteur
ANANDA 250W/80Nm
Battery
BATTERY RACK 468Wh |
| TRANSMISSION |
Rear derailleur
SHIMANO TOURNEY TX800 7v
Crankset
SUNN 44T
Cassette
SHIMANO HG200 7v 12-32
Handle
SHIMANO REVOSHIFT RV200 7v |
| BRAKES |
Brake lever
SHIMANO MT200 160/160 |
| WHEELS |
Wheel size
26'' (S) - 28'' (M/L)
Wheels
26x1.75 (S) - 700x35 (M/L)
RIms
MACH1 ER20 DISC 19c 36T
Hubs
MOYEUX 6 TROUS DISC
Tires
CHAOYANG KESTREL CITY 26x1.75 (S) CHAOYANG KESTREL CITY 700x35 (M/L) |
| COMPONENTS |
Handlebar
ERGOTEC MOON CRUISER 610MM
Seat post
AL 6061 27.2x350MM
Saddle
SELLE ROYAL WAVE |
| ACCESSORIES |
Accessories
GARDE-BOUE ALU, HERRMANS MR4 (AV), AXA BLUELINE (AR), BEQUILLE, RACK MIK HD 27 KG, CHARGEUR 2A |
| WEIGHT |
Weight
21,94 |
| DOCUMENTATION |
Geometry
Size | S (26″) | M (28″) | L (28″) | |
|---|---|---|---|---|
Seat Height | ST | 400 | 450 | 500 |
Top tube Length | TT | 580 | 610 | 625 |
Wheelbase | WB | 1104 | 1179 | 1196 |
Head tube angle | HA | 70° | 69° | 69° |
Seat tube angle | SA | 73° | 73° | 73° |
Chainstay Length | RC | 470 | 500 | 500 |
Bottom bracket offset | BB | -55 | -52 | -52 |
Head tube Length | HT | 180 | 180 | 200 |
Sizes

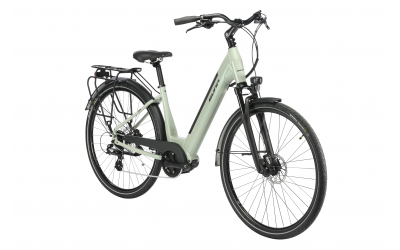

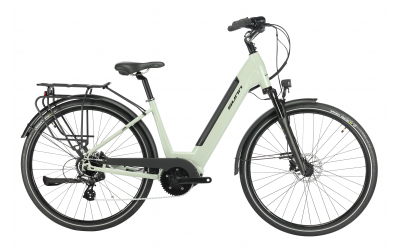

More electric bikes
