Specifications

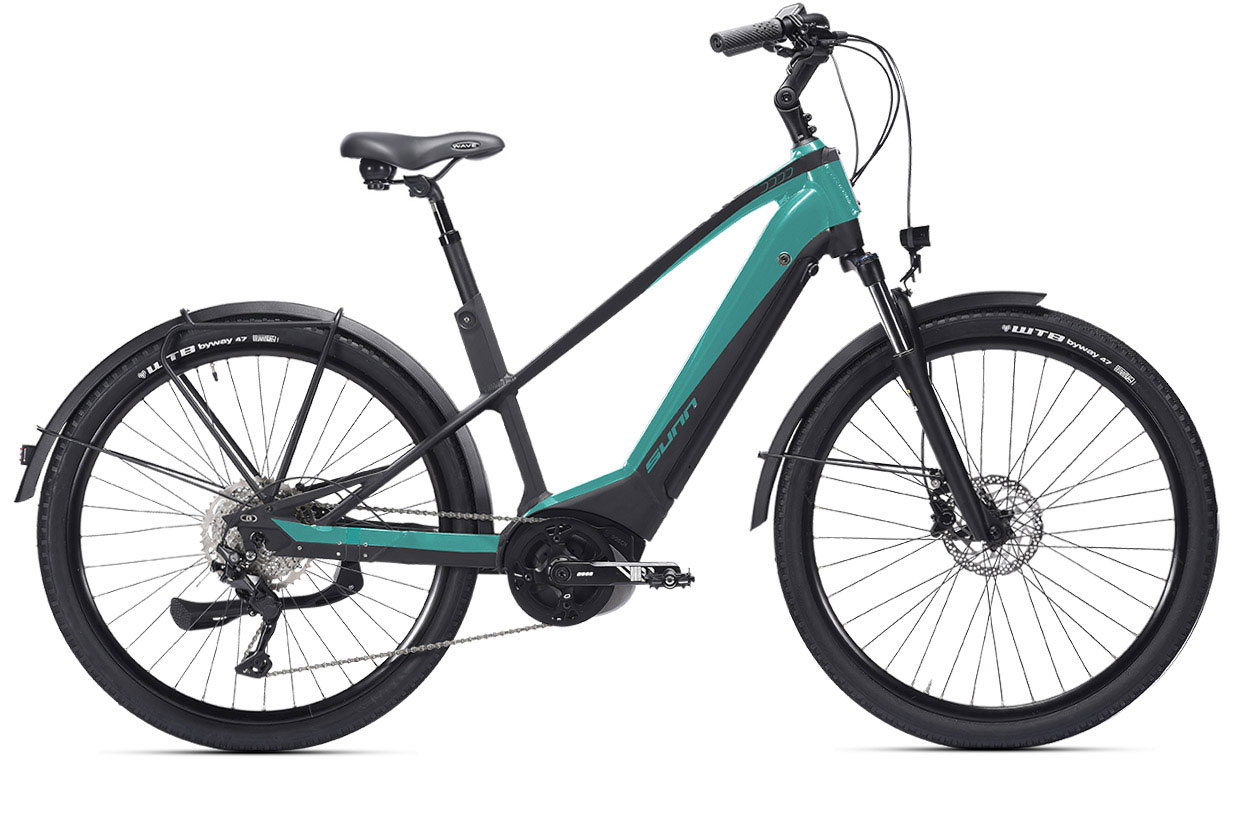

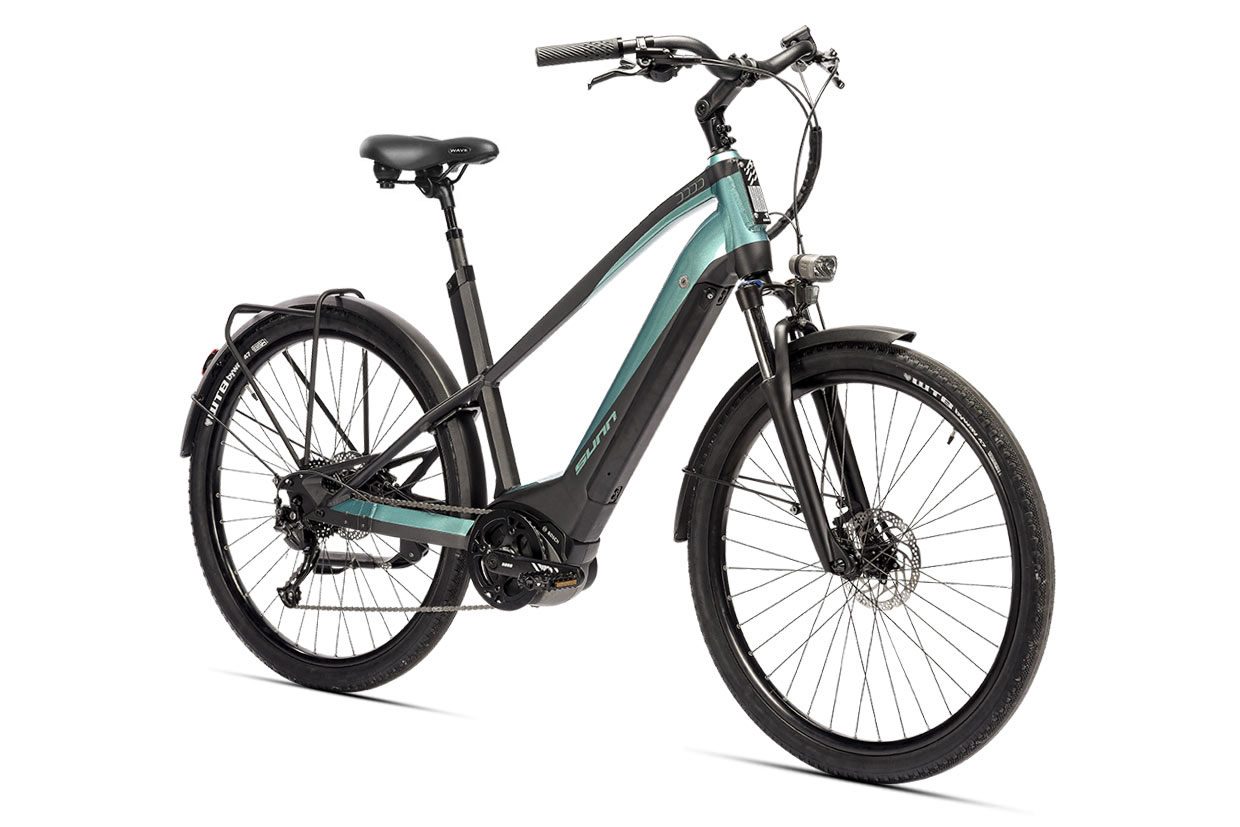

Non-contractual photo. The difficulties in supplying due to the COVID-19 health crisis, impose certain modifications of technical specifications without notice to ensure the availability of the bicycles.
| FRAME |
Frame
ALLOY 6061 FRAME 27.5” INTEGRATED POWERTUBE VERTICAL INTERNAL CABLE ROUTING
Fork
ZOOM 188DS HLO 65MM |
| SYSTEM |
Moteur
BOSCH ACTIVE LINE PLUS 250W/50Nm
Battery
BOSCH POWERTUBE 400Wh
Display
PURION |
| TRANSMISSION |
Rear derailleur
SHIMANO ALTUS M2000 9v
Crankset
SUNN 38T
Cassette
SHIMANO HG200 9v 11-36
Handle
SHIMANO ALTUS M2010 9v |
| BRAKES |
Brake lever
SHIMANO MT200 160/160 |
| WHEELS |
Wheel size
27,5''
Wheels
27.5x1.95
RIms
MACH1 ER20 DISC 19c 36T
Hubs
SHIMANO MT400/TX505 DISC
Tires
VR 27.5x1.95 |
| COMPONENTS |
Handlebar
AL 6061 620MM
Seat post
SUSPENSION 27.2x350MM
Saddle
SELLE ROYAL WAVE |
| ACCESSORIES |
Accessories
GARDE-BOUE ALU, FEU JOS AXENDO 40 (AV) PIMENTO (AR), BEQUILLE, RACK, CHARGEUR 2A |
| WEIGHT |
Weight
21,37 |
| DOCUMENTATION |
Geometry
Size | S | M | |
|---|---|---|---|
Seat Height | ST | 400 | 450 |
Top tube Length | TT | 580 | 600 |
Wheelbase | WB | 1111 | 1132 |
Wheelbase | HA | 69° | 69° |
Seat tube angle | SA | 72,5° | 72,5° |
Chainstay Length | RC | 465 | 465 |
Bottom bracket offset | BB | -60 | -60 |
Head tube Length | HT | 160 | 180 |
Sizes
A unique experience
Ideal for daily trips, the Bosch eBike System 2 combines power with a gentle ride. The Bosch Active Line Plus 250W/50Nm is the best motor in its category, promising simplified bike handling thanks to its light weight and small size.
With its Bosch Powertube 400Wh battery, you can go even farther while making the most of the smooth accelerations delivered by the Bosch drive unit.
